APIs

Description of End point APIs required for project setup.

Access Links

Description of URLs for loading RAMP F/E in Webview (mobile) and system browser (desktop) environments.

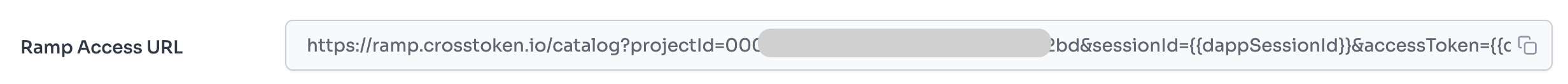

When creating a project, a RAMP access URL including the projectID is generated.

https://ramp.crosstoken.io/catalog?projectId={{projectID}}&sessionId={{sessionId}}&accessToken={{accessToken}}&platform=web&network=testnet

Parameter Description

Parameter Name	Description	Required
projectId	Project ID issued by Nexauth	Required
sessionId	User's game character identification ID	Required
accessToken	In-game user authentication token Used when RAMP B/E requests game asset inquiry from the developer's server.	Required
network	Mainnet, Testnet distinction	Required
lang	Language selection (zh, en, zh-Hant)	Optional
platform	web	Optional

User's Game Asset Inquiry API

API implementation is required to query the game assets owned by users for token issuance. The queried game assets are displayed on the RAMP F/E page.

When RAMP B/E calls the game asset inquiry API, it includes the accessToken and sessionId values from the query parameters of the RAMP F/E URL loaded for token issuance or burning in the game in the Request Header.
Therefore, the developer's server must verify the accessToken and return an appropriate response based on the verification result.

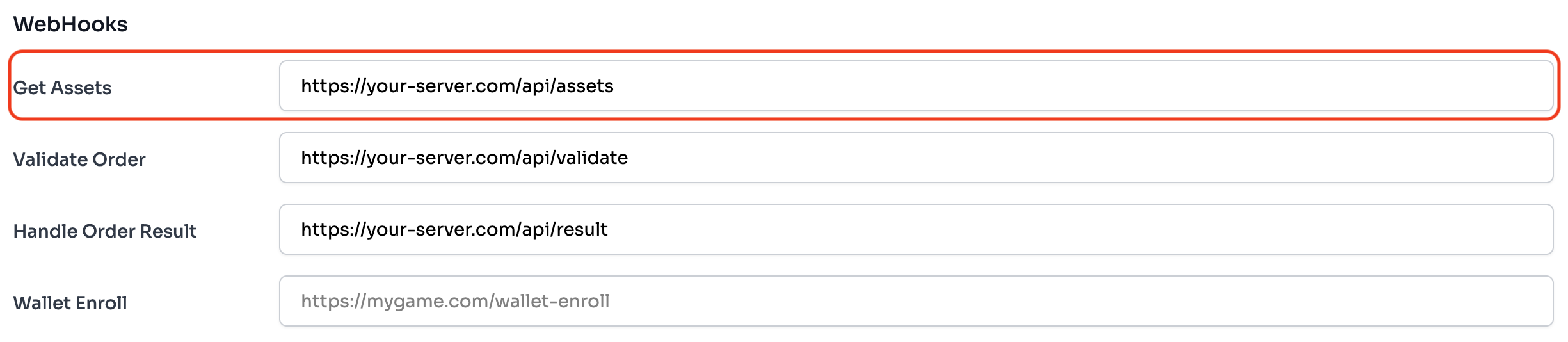

Requests will be made to the Get Assets endpoint set in the CROSS-RAMP Console project.

Request / Response

RAMP B/E to developer-implemented endpoint

Request Sample

GET /api/assets
Host: https://your-server.com
Content-Type: application/json
X-Dapp-Authorization: Bearer {{accessToken}}
X-Dapp-SessionID: {{sessionId}}

Request Header Field Description

Field Name	Description
X-Dapp-Authorization	accessToken generated by the developer's server. Uses the `accessToken` value added to the Query when loading RAMP F/E.
X-Dapp-SessionID	User's character identification ID managed by the developer. Uses the `sessionId` value added to the Query when loading RAMP F/E.

Response Sample

Success Response (200 OK)

{
  "success": true,
  "errorCode": null,
  "data": {
    "v1": {
      "player_id": "player_id_allen",
      "name": "name_allen",
      "wallet_address": "0x62c5a30a90d3c3032dfb0fe4ea05e9c454c56707",
      "server": "test",
      "assets": [
        {
          "id": "item_gold",
          "balance": "1000.123"
        }
      ]
    }
  }
}

Response Field Description

Field Name	Type	Description
success	boolean	Request success status
errorCode	string	Error code (null on success)
data	object	Response data (null on failure)
data.v1	object	API version 1 data
data.v1.player_id	string	User character unique ID
data.v1.name	string	User character name
data.v1.wallet_address	string	User wallet address
data.v1.server	string	User character's connected server information
data.v1.assets	array	List of user's game asset holdings
data.v1.assets[].id	string	`Game asset unique identifier` Must input the game asset ID set in the RAMP console.
data.v1.assets[].balance	string	`User's game asset holding quantity` Must input the user's asset holding quantity in the game.

User's Signature Verification Inquiry API

During the token issuance process, API implementation is required to verify whether the user's signature value matches the transaction request data sent by the developer.

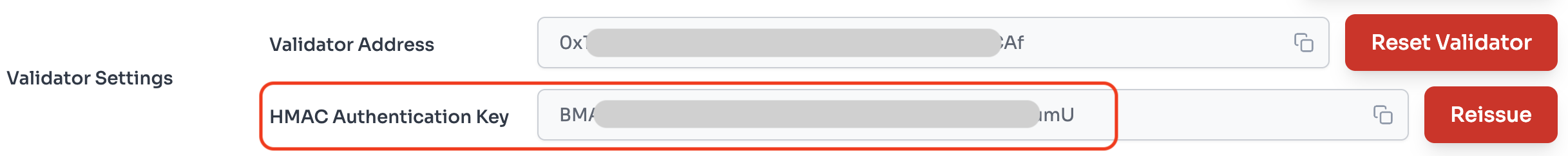

For data integrity verification, requests are made with HMAC-SHA256 signed data generated in the CROSS-RAMP Console included in the Request Header.
Therefore, the developer's server must perform integrity verification using the HMAC value from the CROSS-RAMP Console.

After verifying whether the user's token issuance/burning request violates developer policies (authentication, game asset quantity, etc.), a response is required.

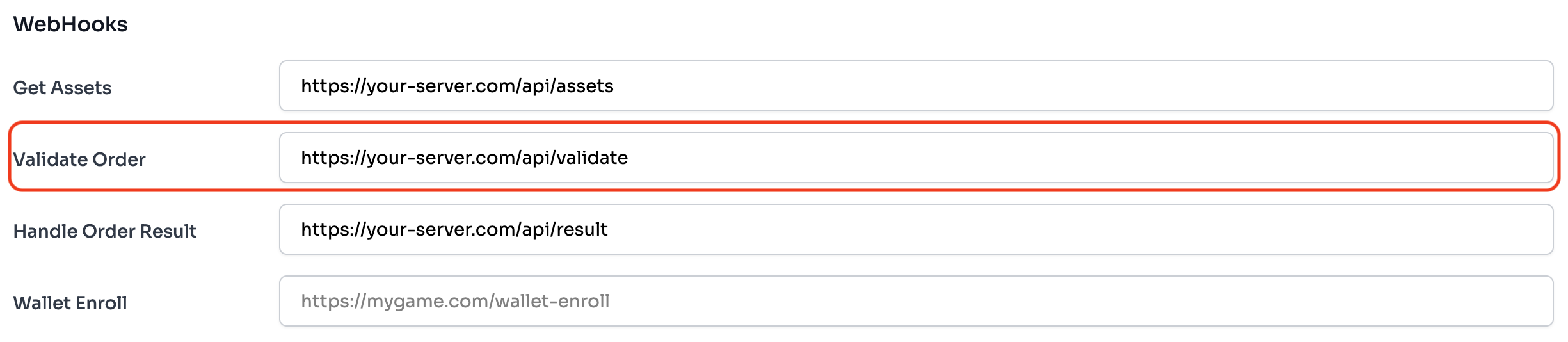

Requests will be made to the Validate Order endpoint set in the CROSS-RAMP Console project.

Request / Response

Request Sample

POST /api/validate
Host: https://your-server.com
Content-Type: application/json
x-dapp-authorization: Bearer {{accessToken}}
x-dapp-sessionid: {{sessionId}}
x-hmac-signature: {{hmac_signature}}

{
  "user_sig": "0x58ea88cc20a571d2bc4f4a7ab687158e1924887c005a8a2ccce9a7c8f669adbb222932f9e760b923b6f359870169d58a171d47516ee71167313d5068dbd84c631c",
  "user_address": "0x6de346a7333d97fe0d39a49178ac65918c257b28",
  "project_id": "3a4----------------------2d7",
  "digest": "0x6d196d0881bb8e322c194fbf53518089b240055134044491a78b14920098e395",
  "uuid": "86b555dd-e622-43fe-a799-c5c4536dd8c6",
  "intent": {
    "method": "mint",
    "type": "assemble",
    "from": [
      {
        "type": "asset",
        "id": "item_gold",
        "amount": 100
      }
    ],
    "to": [
      {
        "type": "ERC20",
        "id": "0x14f6f0057274c3519d6258EB66F5d01D79821D81",
        "amount": 1
      }
    ],
    "target_candidate": {}
  }
}

POST /api/validate
Host: https://your-server.com
Content-Type: application/json
x-dapp-authorization: Bearer {{accessToken}}
x-dapp-sessionid: {{sessionId}}
x-hmac-signature: {{hmac_signature}}

{
  "user_sig": "0xb1378a978b5e77d750c44d4b9bdf4d883d2e2bad8e09c8928e8d83176359cc9376a959c3576c82f2214c9fece66c73417669bf667734ec8f94880885c5d1b82a1c",
  "user_address": "0x6de346a7333d97fe0d39a49178ac65918c257b28",
  "project_id": "3a4f5838f7cdfe31873a43ca021a92d7",
  "digest": "0x7bd721630a8c7e6b1c1050934fc3bf69cadaef0253c46f92f1b03242c5f2e733",
  "uuid": "d7360515-8547-427e-acb5-6556c8376fd4",
  "intent": {
    "method": "burn-permit",
    "type": "disassemble",
    "from": [
      {
        "type": "ERC20",
        "id": "0x14f6f0057274c3519d6258EB66F5d01D79821D81",
        "amount": 1
      }
    ],
    "to": [
      {
        "type": "asset",
        "id": "item_gold",
        "amount": 50
      }
    ],
    "target_candidate": {}
  }
}

Request Header Field Description

Field Name	Description
X-Dapp-Authorization	accessToken generated by the developer's server. Uses the `accessToken` value added to the Query when loading RAMP F/E.
X-Dapp-SessionID	User's character identification ID managed by the developer. Uses the `sessionId` value added to the Query when loading RAMP F/E.

Request Body Field Description

Field Name	Type	Description
user_sig	string	Data signed through CROSSx by the user for token issuance/burning.
user_address	string	User's CROSSx address
project_id	string	Project ID created in RAMP console
digest	string	Hash digest of transaction data This is the original text to be signed using the Validator key generated by the developer.
uuid	string	Request unique identifier
intent	object	Token issuance/burning information
intent.method	string	Execution method (mint, burn)
intent.type	string	Transaction type (assemble, disassemble) assemble : Token issuance disassemble : Token burning
intent.from	array	Source asset information list
intent.from[].type	string	Asset type (asset, ERC20) asset : Game asset ERC20 : Game token
intent.from[].id	string	Game asset ID registered in CROSS-RAMP Console.
intent.from[].amount	number	Game asset quantity used for token issuance
intent.to	array	Target asset information list
intent.to[].type	string	Asset type (ERC20, NFT)
intent.to[].id	string	Token contract address
intent.to[].amount	number	Token quantity to be issued
intent.target_candidate	object	Target candidate information (additional options)

Response Sample

Success Response (200 OK)

{
  "success": true,
  "errorCode": null,
  "data": {
    "userSig": "0x58ea88cc20a571d2bc4f4a7ab687158e1924887c005a8a2ccce9a7c8f669adbb222932f9e760b923b6f359870169d58a171d47516ee71167313d5068dbd84c631c",
    "validatorSig": "0xfd7c12023378170c615bdd63be3e7aa195ff98b42fe84dad34348017fc1050db157e077dd5053328040b476479edebfe5d773bb8602de6bc088951de7b597fd31b"
  }
}

Response Field Description

Field Name	Type	Description
success	boolean	Request success status
errorCode	string	Error code (null on success)
data	object	Response data (null on failure)
data.userSig	string	Data signed by the user through CROSSx for token issuance/burning.
data.validatorSig	string	Data signed with ECDSA using the Validator key generated by the developer. The Validator key address must be registered in the CROSS-RAMP Console.

User's Token Issuance/Burning Result API

Delivers blockchain transaction results for user's token issuance/burning requests to the game server via Webhook.

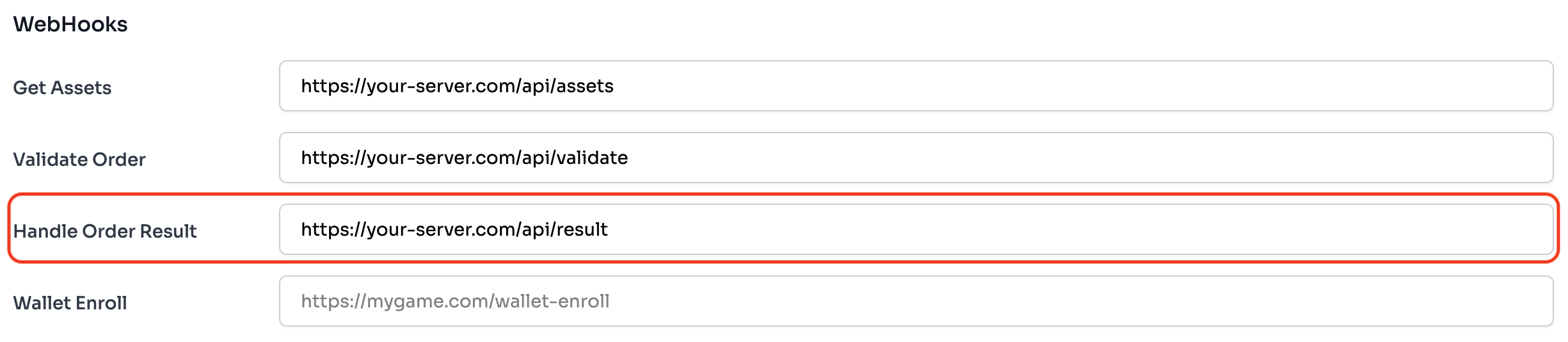

Transaction results are delivered to the endpoint registered in the CROSS-RAMP Console, and the developer's server must respond with HTTP status 200 after receiving the results.

If RAMP B/E does not receive a response or receives an HTTP 500 code, RAMP B/E will retry sending.
For proper processing, HTTP 200 code must be responded.

📘
Retry Information
After the first Webhook delivery attempt, up to 20 retries will be attempted for 12 hours.

2 attempts at 5-minute intervals

7 attempts at 15-minute intervals

10 attempts at 60-minute intervals

Webhook request / response

If receipt.status is not 0x1, the blockchain network transaction request has failed, so game assets must be restored.

Request Sample

POST /api/result
Host: https://your-server.com
Content-Type: application/json
x-dapp-authorization: Bearer {{accessToken}}
x-dapp-sessionid: {{sessionId}}
x-hmac-signature: {{hmac_signature}}

{
    "session_id": "{{dappSessionId}}",
    "uuid": "b6d3976b-36b1-48d6-974b-da1471aa94de",
    "tx_hash": "0x17def972330f874dcfbc8099ada5da777c4273e3c0aa6faebb103e09615f5784",
    "receipt": {
        "type": "0x2",
        "root": "0x",
        "status": "0x1",
        "cumulativeGasUsed": "0x1f531",
        "logsBloom": "0x00000000080040000000200a00000000000000000000000000000000000000000000010000000000002000100000000000000000000000000000000000000000000000100820000400000008000000000000000000000000000000000000110000040000020000000000000000000800000040000000000000000010000000000000000008000000000000080000000000000000000000000000000000100000000000000000000000000400000002000000000000000000000000000000000000000002000000000000000000020800000002000000000000000000000020400000000000000000000200000000000000000000000000000800000000000000",
        "logs": [
            {
                "address": "0x14f6f0057274c3519d6258eb66f5d01d79821d81",
                "topics": [
                    "0xddf252ad1be2c89b69c2b068fc378daa952ba7f163c4a11628f55a4df523b3ef",
                    "0x0000000000000000000000000000000000000000000000000000000000000000",
                    "0x0000000000000000000000006de346a7333d97fe0d39a49178ac65918c257b28"
                ],
                "data": "0x0000000000000000000000000000000000000000000000003e73362871420000",
                "blockNumber": "0xaa3d8f",
                "transactionHash": "0x17def972330f874dcfbc8099ada5da777c4273e3c0aa6faebb103e09615f5784",
                "transactionIndex": "0x0",
                "blockHash": "0x5b62d0387e2f37ea7c76cde2b08b1a36648aca277c76152fdf0da59e6ee63733",
                "blockTimestamp": 0,
                "logIndex": "0x0",
                "removed": false
            },
            {
                "address": "0x7189d67b9ded72e9f1dcfce1c23ea3af418f4a57",
                "topics": [
                    "0x9612604afba70e4cf03261d7d86ca03d08911d9887aa41621dea929e34cfd7b1",
                    "0x3361346635383338663763646665333138373361343363613032316139326437",
                    "0x171ac396aacce04a8c32ecd6322f384796a2a5e15224316a78c9358a8cea809b",
                    "0x0000000000000000000000006de346a7333d97fe0d39a49178ac65918c257b28"
                ],
                "data": "0x00000000000000000000000014f6f0057274c3519d6258eb66f5d01d79821d810000000000000000000000000000000000000000000000004563918244f40000",
                "blockNumber": "0xaa3d8f",
                "transactionHash": "0x17def972330f874dcfbc8099ada5da777c4273e3c0aa6faebb103e09615f5784",
                "transactionIndex": "0x0",
                "blockHash": "0x5b62d0387e2f37ea7c76cde2b08b1a36648aca277c76152fdf0da59e6ee63733",
                "blockTimestamp": 0,
                "logIndex": "0x2",
                "removed": false
            }
        ],
        "transactionHash": "0x17def972330f874dcfbc8099ada5da777c4273e3c0aa6faebb103e09615f5784",
        "contractAddress": "0x0000000000000000000000000000000000000000",
        "gasUsed": "0x1f531",
        "effectiveGasPrice": "0xee6b2800",
        "blockHash": "0x5b62d0387e2f37ea7c76cde2b08b1a36648aca277c76152fdf0da59e6ee63733",
        "blockNumber": "0xaa3d8f",
        "transactionIndex": "0x0"
    },
    "intent": {
        "method": "mint",
        "type": "assemble",
        "from": [
            {
                "type": "asset",
                "id": "item_gold_n",
                "amount": 500
            }
        ],
        "to": [
            {
                "type": "ERC20",
                "id": "0x14f6f0057274c3519d6258EB66F5d01D79821D81",
                "amount": 5
            }
        ],
        "target_candidate": {}
    }
}

Response Sample

POST /api/result
Host: https://your-server.com
Content-Type: application/json

{
  "success": true,
  "errorCode": null,
  "data": null
}

HMAC Signature and Validator Signature Samples

HMAC Signature Sample

const crypto = require('crypto');

function generateHmacSignature(payload, secretKey) {
  // Convert JSON data to string
  const dataString = JSON.stringify(payload);

  // Generate signature with HMAC-SHA256
  const hmac = crypto.createHmac('sha256', secretKey);
  hmac.update(dataString);
  const signature = hmac.digest('hex');

  return signature;
}

// Signature verification function
function verifyHmacSignature(payload, receivedSignature, secretKey) {
  const expectedSignature = generateHmacSignature(payload, secretKey);

  // Safe comparison to prevent timing attacks
  return crypto.timingSafeEqual(
    Buffer.from(expectedSignature, 'hex'),
    Buffer.from(receivedSignature, 'hex')
  );
}

// Usage example
const secretKey = 'your_secret_key_from_console';
const requestData = {
  sessionId: 'player_12345',
  assetId: 'gold_coin',
  amount: '100.50'
};

// Generate signature
const signature = generateHmacSignature(requestData, secretKey);
console.log('Generated signature:', signature);

// Verify signature
const isValid = verifyHmacSignature(requestData, signature, secretKey);
console.log('Signature valid:', isValid);

Validator Signature Sample

import { ethers } from "ethers";

/**
 * generateValidatorSignature
 *
 * Signs the given digest using the validator's private key.
 * The digest must be a 32-byte hash (e.g. "0xabc123...").
 *
 * @param {string} userSig - (optional) user's signature
 * @param {string} digest  - 32-byte digest to sign
 * @returns {Promise<{ success: boolean, signature?: string, error?: string }>}
 */
export async function generateValidatorSignature(userSig, digest) {
  try {
    // Load validator private key (from env or default)
    const privateKey =
      process.env.VALIDATOR_PRIVATE_KEY;

    // Create an Ethers.js Wallet instance
    const wallet = new ethers.Wallet(privateKey);

    // Convert digest (hex) to byte array
    const digestBytes = ethers.getBytes(digest);

    // Sign the digest (must be 32 bytes)
    const rawSignature = await wallet.signingKey.sign(digestBytes);

    // Serialize signature (r + s + v)
    const signature = ethers.Signature.from(rawSignature).serialized;

    // Return success response
    return {
      success: true,
      signature,
    };
  } catch (error) {
    console.error("Error generating validator signature:", error);

    // Return failure response
    return {
      success: false,
      error: error.message,
    };
  }
}
